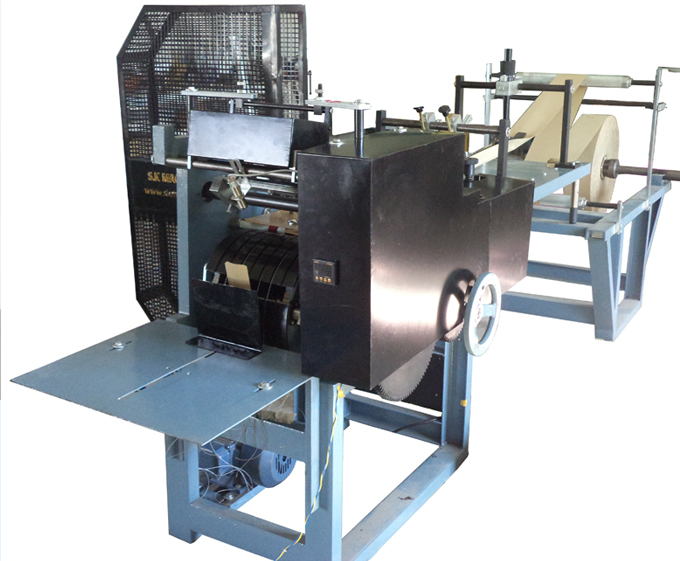

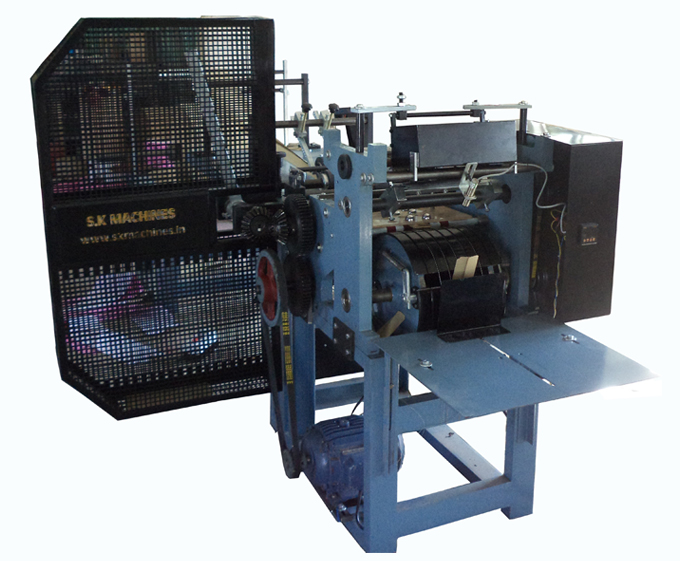

BASIC MODEL BABY

• • MACHINE DETAILS

    RUNNING SIZE - Width 6 cm to 18 cm
    Height - 8 cm to 24 cm
    Gazet - 3 cm to 5 cm
    PAPER THICKNESS - 44 GSM to 140 GSM
    PAPER ROLL FEEDING SIZE - Up to 50 cms
    RUNNING SPEED - 10,000 - 18,000/hr
    (varies according to size)
    MOTOR - 2HP Motor with drive
    PLATES - 6 Size plates with gear wheels
    DIMENSION - 5.0 ft. x 2.5 ft x 3.0 ft.

  • BABY MACHINE - BASIC MACHINE DETAILS

    Easy Paper side Pulling Technology
    Micro Up Down System
    Folding Plate Micro Adjustment System
    Paper Non Slipping Technology
    Cover Easy Guide System
    Electronic Counting with Reset
    Sensing Technology
    On / Off System Speed Controller
    Electronic Drive Automation
